OpenAI Codex CLI with AI API Gateway

This webpage provides steps for installing and configuring the OpenAI Codex CLI on macOS using AI API Gateway model aliases.

1. Prerequisites

Required Software

System requirements

AI API Gateway Details / API Key

• Base URL: https://aiapi-prod.stanford.edu/v1
• API Key: Your own AI API key (sent via secure channel)
• Model alias: Must match the gateway alias exactly (example used throughout this doc: gpt-5.4)

2. Installation Steps (macOS)

Step 1- Check if Codex CLI already exists

Run:

_shell

codex --version

Expected result: a version string is returned (0.96 or later recommended). If you get command not found, proceed to Step 2.

Step 2 — Install Node.js (if needed)

Codex runs on Node.js. Check whether it is installed:

_shell

node --version

If it is missing, install it with Homebrew:

brew install node

Step 3- Install OpenAI Codex CLI

Homebrew (recommended on macOS):

brew install codex

Or via npm:

npm install -g @openai/codex

If the install location is not on your PATH (zsh):

echo 'export PATH="$HOME/.npm-global/bin:$PATH"' >> ~/.zshrc
source ~/.zshrc

Re-check:

codex --version

3. Configuration Steps

Codex reads gateway configuration from ~/.codex/config.toml - a TOML file.

Step 4 — Create the Codex config directory (if needed)


mkdir -p ~/.codex

Step 5 — Create/update the config file

Write the config in one step (this overwrites any previous, partially-edited file with a known-good version):

cat > ~/.codex/config.toml << 'EOF'
model = "gpt-5.4"
model_provider = "stanford"

[model_providers.stanford]
name = "Stanford AI API"
base_url = "https://aiapi-prod.stanford.edu/v1"
env_key = "STANFORD_AI_API_KEY"
wire_api = "responses"
requires_openai_auth = false
EOF

Confirm it wrote correctly:

cat ~/.codex/config.toml

Please note: — env_key is a variable NAME, not the key. The env_key value must be the name of an environment variable (here, STANFORD_AI_API_KEY). Do not paste your actual API key here. If you do, Codex looks for a variable literally named after your key, finds nothing, and silently falls back to the ChatGPT sign-in. The key itself is set in Step 6.

Step 6 — Set the API key as an environment variable

Codex reads the key from the variable named in env_key. Add it to your shell profile (zsh). Replace YOUR_AIAPI_KEY with your real key:

echo 'export STANFORD_AI_API_KEY="YOUR_AIAPI_KEY"' >> ~/.zshrc
source ~/.zshrc

Confirm the variable is set (it should print your key back):

echo $STANFORD_AI_API_KEY

Step 7 — Clear any existing ChatGPT sign-in

If Codex was ever opened before, it may hold a ChatGPT session that overrides the gateway and defaults to model gpt-5.6-sol. Clear it so Codex uses your gateway provider:

codex logout

Step 8 — Add a launch alias (ensures Codex always uses the gateway)

A bare codex command may still fall back to the ChatGPT sign-in screen. This alias forces the gateway provider and model on every launch. Add the line below to the end of ~/.zshrc (open it with: nano ~/.zshrc):

alias codex='codex -c model_provider="stanford" -c model="gpt-5.4"'

Save (Ctrl+O, Enter, Ctrl+X), then reload:

source ~/.zshrc

Confirm the alias registered (it should print the alias definition back):

alias codex

Configuration Fields Explained

4. Validation

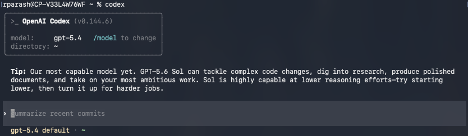

Launch Codex

With the alias in place, simply run:

codex

Confirm routing (authoritative check)

In the session, type /status. Confirm it shows model gpt-5.4 and base URL https://aiapi-prod.stanford.edu/v1. This is the reliable way to verify routing.

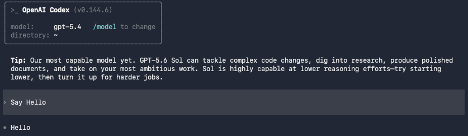

Test Case 1 — Basic response

In the session, enter:

Say OK/Hello

Expected result: Codex responds normally. Validation is complete when /status shows the gateway, and you receive a response without errors.

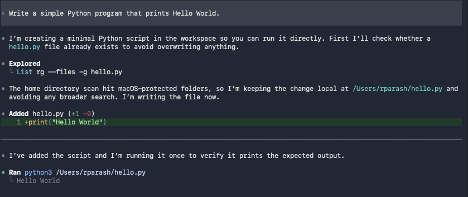

Test Case 2 — Code Generation Test (Python)

Ask:

 Write a simple Python program that prints Hello World.

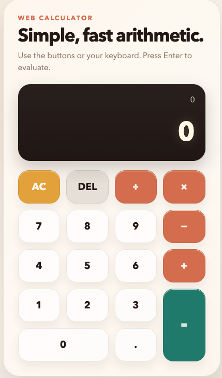

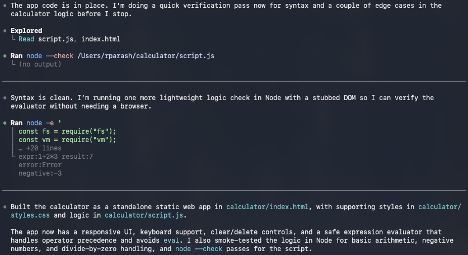

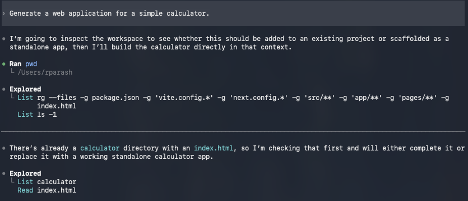

Test Case 3 — Web Application

Ask:

Generate a web application for a simple calculator.

5. Troubleshooting / Common Errors

5.1 Config file is TOML, not JSON

• Codex uses ~/.codex/config.toml (TOML syntax) — do not paste JSON. Use straight quotes only; smart / curly quotes break the parse.
• Every section header needs square brackets: [model_providers.stanford] on a single line. A split or unbracketed header causes: key with no value, expected `=`.

5.2 Base URL must include /v1

• Correct: https://aiapi-prod.stanford.edu/v1
• Wrong: https://aiapi-prod.stanford.edu

5.3 env_key holds the variable NAME, not the key

• Set env_key = "STANFORD_AI_API_KEY" and export the key separately (Step 6). Pasting the raw key into env_key makes Codex look for a variable named after your key, fail to find it, and drop to the sign-in screen.
• Alternative (less secure): keep the key in the file with experimental_bearer_token = "YOUR_KEY" and remove env_key — the two cannot coexist.

5.4 API key must be exported in the same shell

A 401 / 403, or an unexpected sign-in prompt, usually means STANFORD_AI_API_KEY is not set in the terminal that launched Codex.

Check with:

echo $STANFORD_AI_API_KEY

If it prints nothing: run source ~/.zshrc (or open a new terminal), confirm the export went into ~/.zshrc (not ~/.bashrc), and check the name matches env_key exactly.

5.5 Model name must match the gateway alias exactly

If you get "model not found" / "invalid model", confirm the available aliases:

curl -s https://aiapi-prod.stanford.edu/v1/models \
  -H "Authorization: Bearer YOUR_AIAPI_KEY"

Then update the model value in config.toml (and the alias in the launch alias). See Available Models.

5.6 Codex shows the sign-in screen or uses gpt-5.6-sol

If /status shows gpt-5.6-sol (Codex's built-in default) or you keep landing on the three sign-in options, Codex is not using your gateway provider. In order:

• Run codex logout to clear any ChatGPT session.
• Make sure the launch alias (Step 8) is active — check with alias codex. Plain codex can ignore the config's default provider; the alias forces it.
• On the "Sign in with ChatGPT / Provide your own API key" screen, do not paste your key — that field targets Codex's built-in OpenAI provider, not your gateway. Press Esc and launch via the alias instead.

5.7 "profile ... cannot be used" / legacy profile error

Newer Codex versions reject profile = "..." and [profiles.x] inside config.toml. If you see this error, remove both from config.toml. Either use the launch alias (Step 8), or put profile overrides in a separate file ~/.codex/<name>.config.toml and launch with codex --profile <name>.

5.8 Verifying which model/endpoint is actually in use

• Authoritative: /status in-session shows the resolved model and base URL.
• Independent proof: the gateway team's dashboard should log the request against your key, or tail ~/.codex/log/ to see the outbound aiapi-prod.stanford.edu/v1/responses calls.
• Not reliable: the model's answer to "what model are you using?" — it cannot see your config or the endpoint and will give a generic family name.
